380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

Product Categories

Xinxiang Dayong Vibration Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

Brand Name : DY

Model Number : DZSF

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD1900-3500

Payment Terms : L/C,D/A,D/P,T/T,Western Union,

Supply Ability : Customize

Delivery Time : 7-15 work days

Packaging Details : Wooden Package

Type : LINEAR

Voltage : 380V/415V/450V

Core Components : Horizontal Vibrating Motor

Weight : 300 KG

Warranty : 1.5 Years

Application : Chemical/Food/Sand

Material : Carbon Steel/ Stainless Steel 304

Usage : Separation Screening

Function : Screening\separation\sorting\sieving

Cleaning system : Bouncing Ball

Installation : Under Technical Guidance

Mesh size : 2-220 Mesh

Contact Now

Sand clay powder coating vibrating screen sieving machine

Product Display

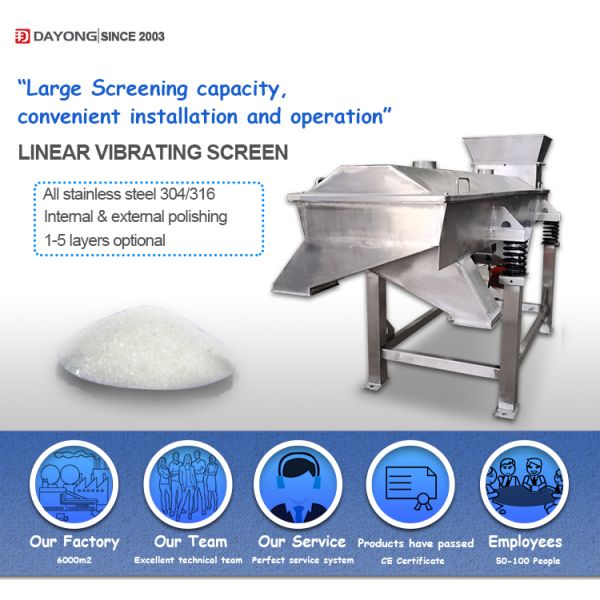

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

DZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.

Product Parameters

Model	W*L (mm)	Power (Kw)	Screen surface angle	Layer
DZSF-520	500*2000	2*(0.4 - 0.75)	0-7 degree	1-5 layers
DZSF-1020	1000*2000	2*(0.4 - 0.75)
DZSF-1030	1000*3000	2*(1.1 - 1.5)
DZSF-1250	1200*5000	2*(1.1 - 2.2)
DZSF-1560	1500*6000	2*(2.2 - 3.7)
DZSF-1845	1800*4500
DZSF-2260	2200*6000

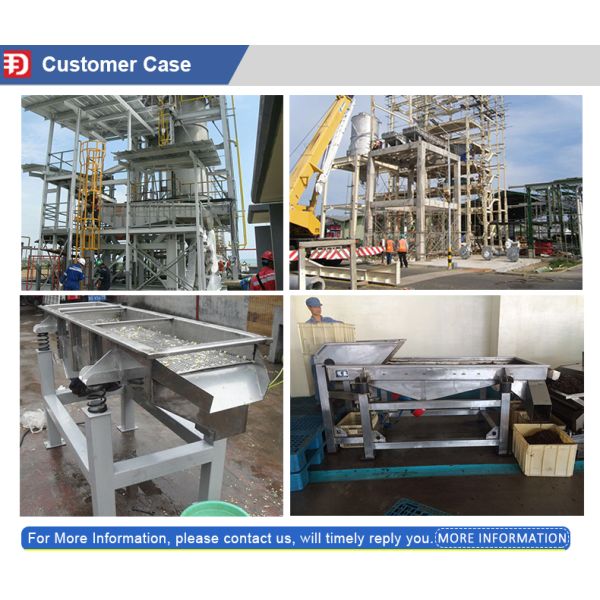

Customer Case

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

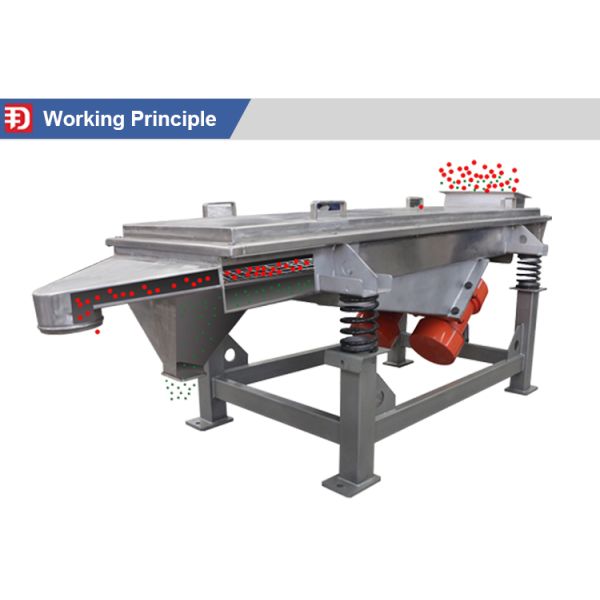

Working Principle


The material enters the feed port of the sieve machine uniformly from the feeder, and several grading products are produced through the multi-layer screens. Different grading materials are respectively discharged from the respective outlets.

380V 415V 450V Clay Powder Vibrating Screen Sand Sieving Machine

Features 1. Whole sealing and no dust emission. 2. Low energy consumption,low noise and high efficiency.
3. High screening accuracy, large processing capacity and simple structure.
4. Firm and reliable, long service life.
5. It can be equipped with one or more layers of screen mesh.
6. The power layout can be adjusted to suit the production conditions according to the customer's needs.
ApplicationLinear vibrating screen has a unique effect on powdery, granular materials selection and classification. Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries. Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints and so on. The pharmaceutical industry: industrial chemicals, the powder particles pills, pellets, etc; Food industry: soy, chestnut, small steamed bread, spices, sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice. Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes. Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.

Payment & Shippment

Company Introduction

With more than 10 years of development and technology precipitation, Our company, Xinxiang Dayong Vibration Equipment Co.,Ltd, has become one professional international manufacturer for sieving machines, vibro sifter machines, ultrasonic sieving clearing systems, separators, vibrating screen machines, conveying equipment, filtration equipment, crushing equipment and so on.

As one of the largest OEM factories in China, each year we supply around 5000 sets machines to serve more than 150 distributors, manufacturers and traders, providing all kinds of reliable customized equipment to help our clients build their brands. Different from those small factories, which only produce several parts for one machine, our factory have one complete modernized production line of sieving machines, producing all the parts of products. By this way, we can monitor every aspect of production and do the customized goods for different industries. Our engineers can provide the most suitable sieving solutions to meet the needs of different industries, from fine materials, such as food, chemical, medicine to rough materials, such as mineral,fertilizer, garbage.

FAQ

1.How is the quality of your products?

Our products are manufactured strictly according to national and international standard, and we take a test on every machine

before delivery.

2.Guaranteed:

If product’s quality is not consistent with the description as we described or the promise before you place order, we promise 100%

refund.

3.How about price?

Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and

absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to

quantity”.

4.Service and Payment Terms?

1. We usually accept T/T, L/C;

2. T/T: 30% in advance as down payment, the balance before delivery;

3. We take pictures of finished products before delivery.
